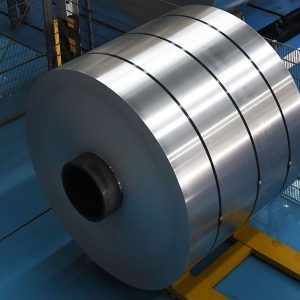

3003 Aluminum Strip
3003 is the most widely used of all aluminum alloys. It is essentially commercially pure aluminum with the addition of manganese which increases the strength some 20% over the 1100 grade.
3003 aluminum is highly workable, formable, and weldable, with exceptional corrosion resistance. It is an alloy that is particularly popular for outdoor projects that require extensive forming or joining operations. It is typically used in chemical tanks, trim, pressure vessels, piping, and decorative parts.
Product Description
| Element | Al | Cu | Fe | Mn | Si | Zn |
|---|---|---|---|---|---|---|
| Percentage | 98.7 | 0.05 – 0.2 | 0.7 max | 1 – 1.5 | 0.6 max | 0.1 max |
Physical Properties
| 3003 Aluminum Strip | -O | -H14 | -H22 |
|---|---|---|---|
| Density | 0.098 lb/in3 | 0.098 lb/in3 | 0.098 lb/in3 |
| Ultimate Tensile Strength | 16 ksi | 22 ksi | 20 ksi |
| Yield Tensile Strength | 6 ksi | 21 ksi | 14 ksi |
| Fatigue Strength | 7.3 ksi | 8.7 ksi | 10 ksi |
| Shear Strength | 11 ksi | 14 ksi | 12 ksi |
| Shear Modulus | 3,800 ksi | 3,800 ksi | 3,800 ksi |
| Hardness Rockwell J | N/A | N/A | N/A |
| Hardness Brinell | 28 | 40 | 37 |
| Elongation at Break Percentage | 28% | 8.3% | 7.7% |
| Modulus of Elasticity | 10,000 ksi | 10,000 ksi | 10,000 ksi |
| Poisson’s Ratio | 0.33 | 0.33 | 0.33 |
| Machinability Percentage | 10% | 30% | 30% |
| Melting Point | 1,190-1,210 °F | 1,190-1,210 °F | 1,190-1,210 °F |
| Specific Heat | 2.1 x 10^-1 BTU/lb-°F | 2.1 x 10^-1 BTU/lb-°F | 2.1 x 10^-1 BTU/lb-°F |
| Thermal Conductivity | 1,200 BTU-in/hr-ft^2-°F | 1,200 BTU-in/hr-ft^2-°F | 1,200 BTU-in/hr-ft^2-°F |
| Electrical Conductivity | 44% IACS | 44% IACS | 44% IACS |
Applications
- Chemical Tanks
- Trim
- Pressure Vessels
- Piping
- Decorative Parts
