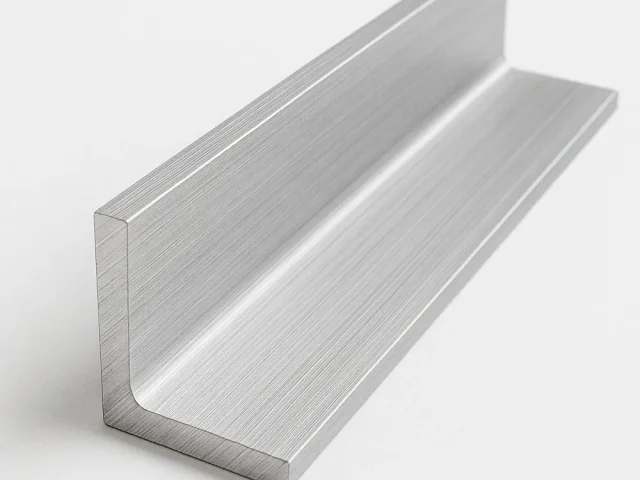

Aluminum Angle (L) — 6061 Structural & 6063 Architectural
Equal & unequal L profiles per ASTM B221. Stock legs 10–150 mm (3/8″–6″), thickness 1.0–12.7 mm, lengths up to 12 m. Cut, deburr, anodize, powder coat, and export packing.
- 6061-T6/T6511
- 6063-T5/T52/T6/T66
- Equal & Unequal
- MTR/COA · Global Shipping
Why Aluminum Angle?
Lightweight Strength

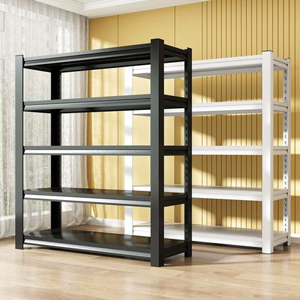

High stiffness-to-weight for frames, guards, shelves, and architectural trims.
Finish Flexibility
Mill, brushed, anodized (clear/black), or powder-coated for aesthetics and durability.
Fabrication Friendly
Easy cutting, drilling, and assembly. 6061 weldable; 6063 extrudes clean details.
6061 vs 6063 — Which Angle Should I Choose?
| Alloy/Temper | Strength | Weldability | Surface/Anodize | Typical Uses |
|---|---|---|---|---|
| 6061-T6/T6511 | Higher structural strength | Good | Good | Machine frames, brackets, vehicle & marine structures |

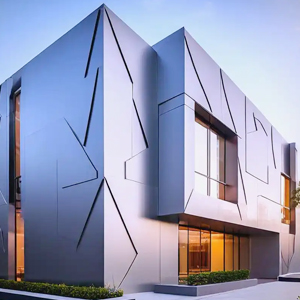

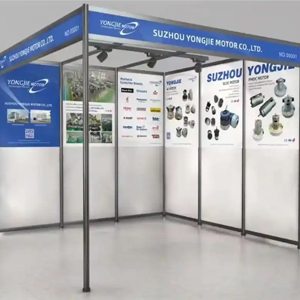

| 6063-T5/T52/T6/T66 | Medium strength | Good | Excellent (premium anodize) | Architectural trims, railing, displays, interior build-outs |
Not sure? Share loads, finish, and environment—we’ll recommend the best option.
Stock Size Range & Capability
We supply equal and unequal L angles. If your spec isn’t listed, send a drawing—custom profiles and tight tolerances are available.
Equal Angle (Metric)
Legs (A = B): 10 / 12 / 15 / 20 / 25 / 30 / 40 / 50 / 60 / 75 / 90 / 100 / 120 / 150 mm
Thickness: 1.0 / 1.5 / 2.0 / 3.0 / 4.0 / 6.0 / 8.0 / 10.0 / 12.7 mm
Lengths: 3–6 m standard; up to 12 m custom
Unequal Angle (Metric)
Legs (A×B): 20×10 / 30×20 / 40×20 / 50×25 / 60×30 / 75×50 / 100×50 / 120×60 / 150×75 mm
Thickness: 1.5–12.7 mm depending on legs and alloy
Example Size Table (Imperial)
| Leg A × Leg B (in) | Thickness (in) | Alloy | Est. Weight (lb/ft) | Notes |
|---|---|---|---|---|
| ¾ × ¾ | 1/8 | 6063-T5 | 0.19 | Architectural |
| 1 × 1 | 1/8 | 6061-T6 | 0.26 | General fabrication |
| 1½ × 1½ | 3/16 | 6061-T6 | 0.66 | Stronger frames |
| 2 × 1 | 1/8 | 6063-T6 | 0.35 | Unequal, light trim |
| 3 × 3 | ¼ | 6061-T6 | 2.23 | Heavy structural |
Weights are estimates; confirm on quotation/MTR for your exact alloy, temper, and tolerance.
Aluminum Angle Weight Calculator
Estimate linear weight. Density defaults to 2.70 g/cm³. For architectural 6063 you can keep this value; for other alloys adjust as needed.
Method
Approximate area A ≈ (A×t) + (B×t) − t² − corner adjustments.
If inside radius r > 0, subtract the overlap triangle and add fillet sector.
Convert mm→cm, Volume V = A × length, Mass = V × density.
A≈(A×t + B×t − t²) ; Volume=A×L; Mass=V×ρ with ρ=2.7 g/cm³.
Available Services

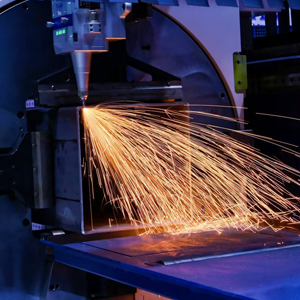

- Cut-to-length (±0.5 mm typical), miter cutting, notching, deburr/chamfer
- CNC drilling & slotting; jigged welding for 6061
- Surface: mill, brushed, clear/black anodized, powder coat
- Export packing: film wrap + foam spacers + seaworthy crates/pallets
Quality & Compliance
- MTR/COA with heat number traceability
- Dimensional & hardness checks; corner radius verification
- ASTM B221 conformance referenced on documents
- RoHS on request
Product Packaging
Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
Common Applications
Machine Frames & Brackets
Right-angle stiffness with low mass for fixtures, jigs, and guarding.
Producer Pricing
Direct mill + partner extrusion/drawing lines.
2,000 t/mo
Stable capacity; single-piece length up to 12 m.
3–7 Days
Stock cutting; custom profiles typically 2–4 weeks.
Global Incoterms
EXW/FOB/CIF/DDP with complete export docs.
Frequently Asked Questions (FAQs)
Do you supply sharp-corner angles?
Standard extrusions include a small inside radius. For sharp edges, machining or special tooling may be required—share your print.
What tolerance can I expect?
Extruded angle dimensional and straightness tolerances follow ASTM B221; we’ll confirm achievable limits per size and temper.
Can you notch, slot, or pre-drill?
Yes. We offer CNC and jigged fabrication to speed your assembly while controlling burr and flatness.
Which finish is best outdoors?
Clear/black anodize or powder coat. 6063 provides a more uniform anodized appearance for visible trims.
